Replacement Sections
Sectional doors are at high risk of taking damage from vehicles leaving the door panels in disrepair or unsightly. We carry replacement sections in both the C-series insulated models as well as aluminum.
See below for options.
Why come to Merik for your section replacement?
Variety of colours, thicknesses and glazing options available
Our services allow for fast and accurate replacement
Quality sections that you can trust
Contact us at 905-670-1200
or parts@merik.ca
INSULATED PANELS
Insulated sections fabricated from pre-painted, hot dip galvanized, steel sheet

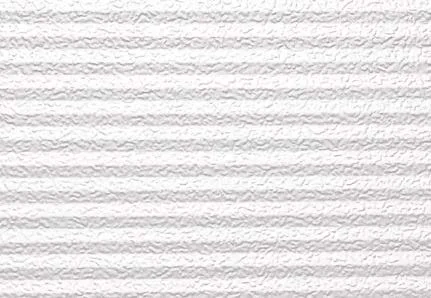

Face sheet stucco embossed and rib reinforced
Rigid polyurethane insulation core
CFC-1 1 free
Available Thickness:
C150: 1 1/2”
C175: 1 3/4”
C200/C200C: 2”
C300: 3”
Please note that colours vary between monitors or printed materials compared to the end product. Colour samples available upon request.
C150 & C175 Options
C200 Options
C200C Options
C300 Option
Glazing Options
1/8” (3mm) or 1/4” (6mm) thick: clear acrylic, polycarbonate, plain or tempered glass, lexan (MR10 Coating)
5/8" (16mm) polycarbonate - tinted options available
1/2” (13mm) thick sealed plain or tempered glass & Self-aligning glazing retainer
1/2" (13mm) Sealed Lexan with MR10 coating
| C150, C175, C200, C200C | |
|---|---|
| Type B | 24" x 6" |
| Type CPL | 24" x 8" |
| Type D | 34" x 16" |
| Type E | 24" x 12" |
| Fullview |
| C300 | |
|---|---|
| Type CPL | 2" x 8" |
| Type D | 34" x 16" |
| Type E | 24" x 12" |
| Fullview | |
Aluminum Panels
Manufactured from high quality 6064-T6 aluminum alloy extrusions
Available bottom panel of 0.05" (1.29mm) thick stucco embossed aluminum sheet
Dual finned seals between sections
Kick-proof bottom panels available in insulated and non-insulated
Available Thickness:
A175: 1 3/4”
