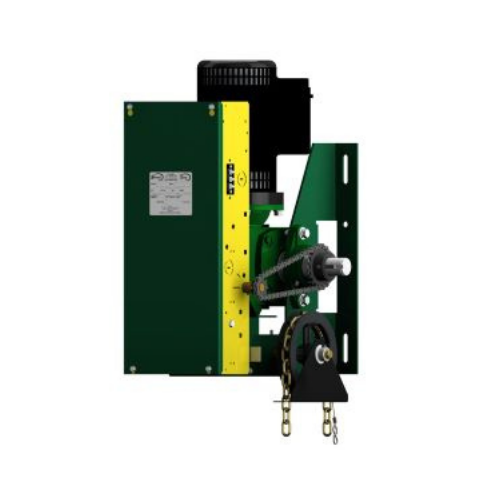

Heavy-Duty Industrial Gear Head Operator With Hoist

• 25 cycles/hour, 80 cycles/day

• Heavy-duty worm gear industrial operator designed for industrial standard, high and vertical lift sectional doors or rolling doors and grilles.

• The operator can be wall, hood, or shelf mounted on either side of the door. It incorporates the patented Hoist-a-matic®, a self-engaging chain hoist for manual operation, simplifying operation and installation.

• 60Hz high starting torque, continuous-duty, single-phase capacitor start or 3-phase motor, open drip proof with enclosed ends or drip cover, protected against overload. Also available with 50Hz 220V 1 phase and 380V 3 phase motor, consult inside sales.

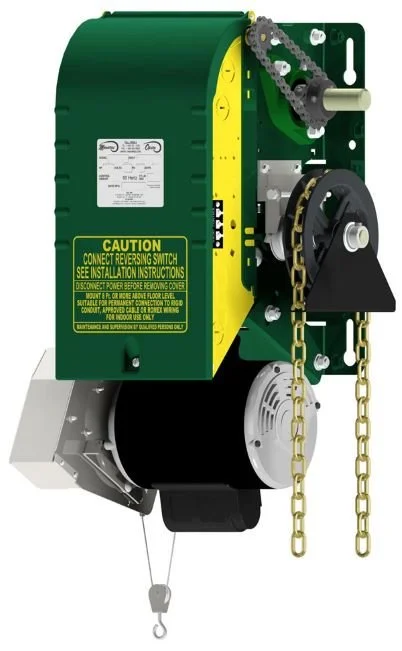

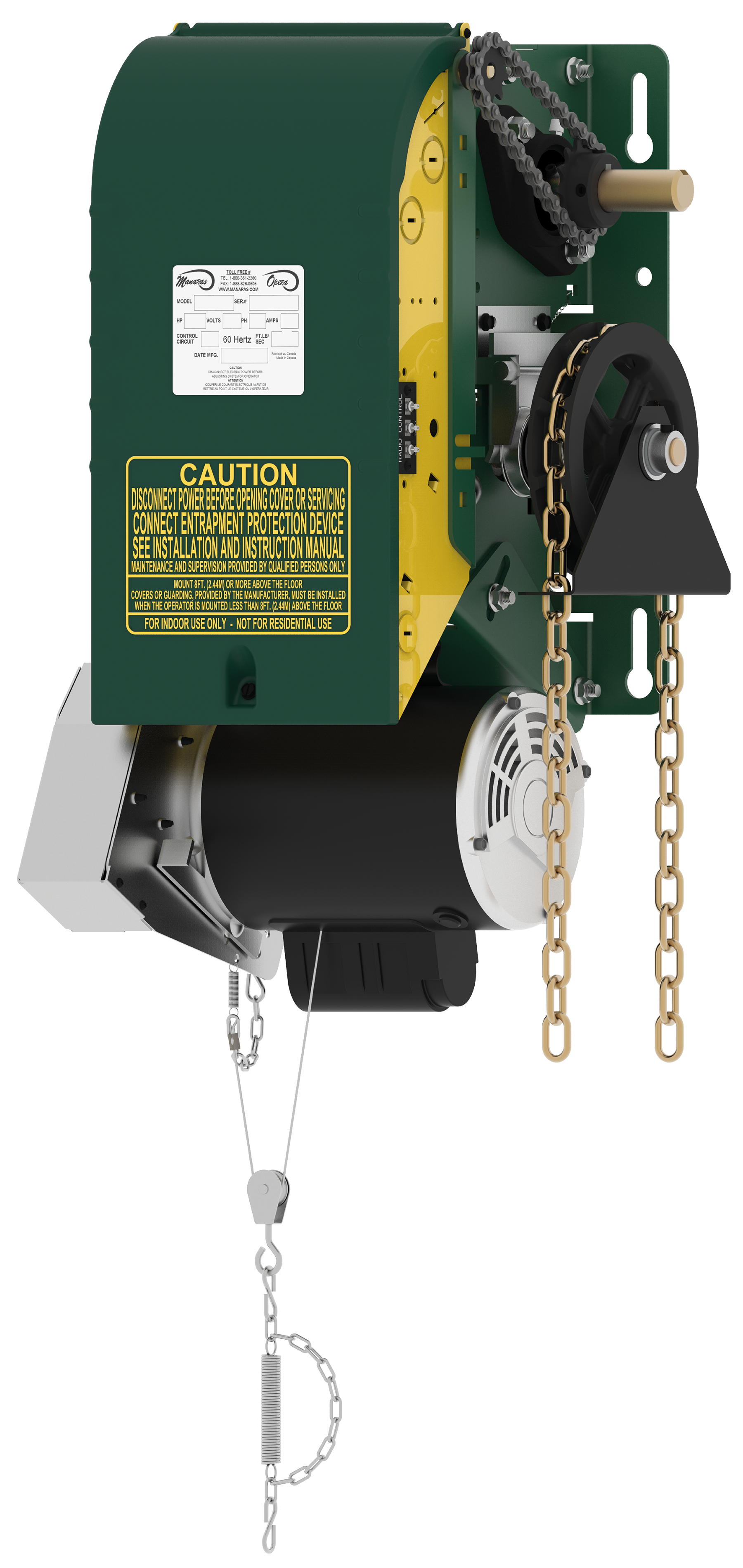

Heavy-Duty Industrial Jackshaft Operator With Solenoid Brake

• Ultra high-end heavy-duty V-belt drive industrial operator designed for use on standard, high and vertical lift sectional doors or rolling doors and grilles

• The operator can be wall, hood, or shelf mounted on either side of the door. It incorporates a chain hoist for manual operation, with a floor-level engaging device.

• 60Hz high starting torque, continuous-duty, single-phase capacitor start or 3-phase motor, open drip proof, protected against overload. Also available with 50Hz 220V 1 phase and 380V 3 phase motor

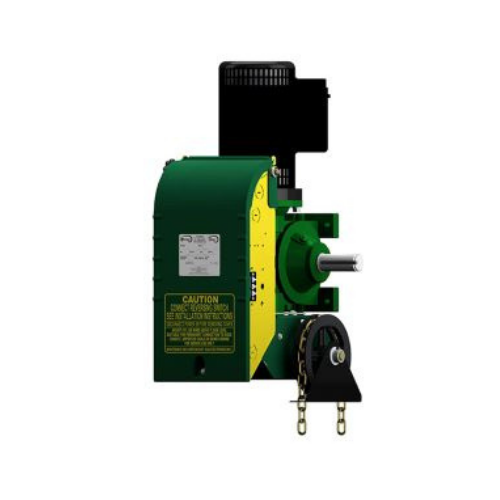

Super-Duty Industrial Gear Head Operator With Hoist

• 25 cycles/hour, 80 cycles/day

• Very heavy-duty worm gear industrial operator designed for use on industrial standard, high and vertical lift sectional doors or rolling doors and grilles.

• The operator can be wall, hood, or shelf mounted on either side of the door and incorporates a chain hoist for manual operation with a floor level engaging device with electrical cut-out.

• 60Hz high starting torque, continuous-duty industrial type, single phase capacitor start or 3 phase motor, open drip proof with enclosed ends or drip cover, protected against overload. Also available with 50Hz 220V 1 phase and 380V 3 phase motor, consult inside sales.

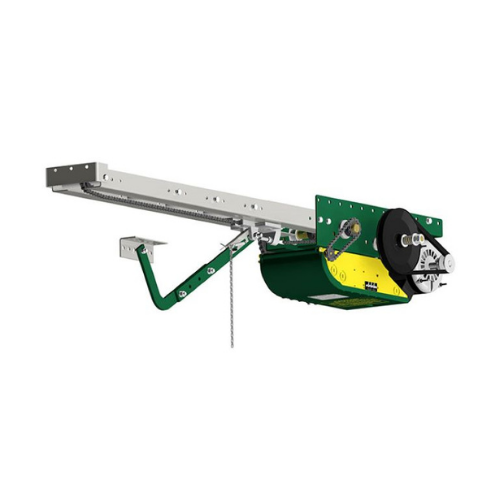

Heavy-Duty Commercial Trolley Operator

• 25 cycles/hour, 80 cycles/day

• Heavy-duty low headroom trolley operator designed for use on industrial standard lift sectional doors.

• 60Hz high starting torque, continuous-duty, single phase capacitor start or 3 phase motor, open drip proof, protected against overload. Also available with 50Hz motor 220V 1 phase and 380V 3 phase motor

• All electrical components are in a Nema 1 enclosure. Hinged electrical enclosure cover.

• Ceiling-mounted with only 6.25" headroom clearance required below the tracks. For indoor use only.
