Inground Swing Gate Systems
Security that does not compromise aesthetics
These swing gate operators are virtually invisible while providing premium access control. Due to the secure inground installation, these swing gate operators are highly durable and reliable. The operator is contained to a foundation box which allows for installation in a compact space.
Need more information or want to request a quote? Contact us today!

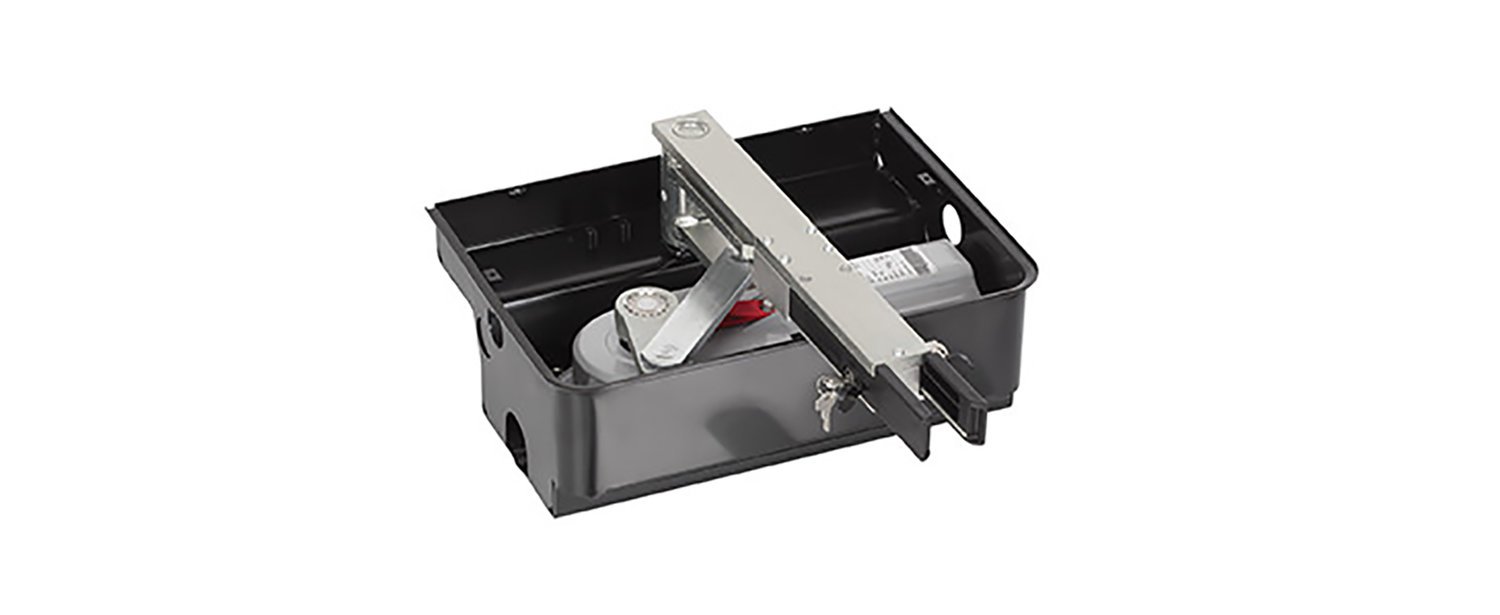

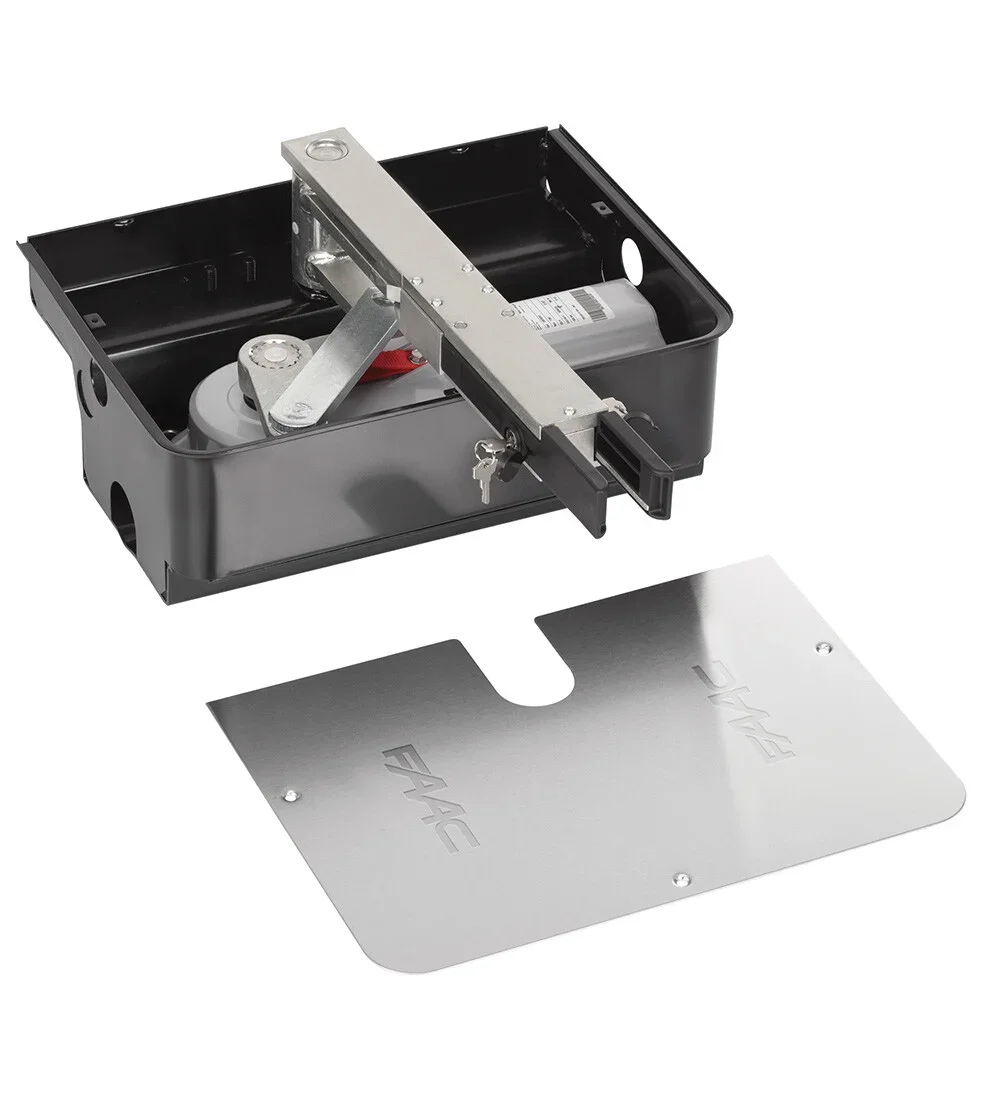

FAAC 770N
This underground electromechanical operator offers an invisible and durable system that you can trust. It features a manual release with a double lever, accessible from both inside and outside the property. The operator can be accessed for repairs without removing the gate leaf. Inground swing gate operators are a great choice for keeping the mechanism out of site for both aesthetics and durability reasons.
For more information, contact us or download the info sheet
Features and Benefits:
Non-intrusive: Due to the inground design, these gate operators are discreet and silent
Secure: Key-protected, self-locking, manual release
Safe: Anti-crushing device and virtual encoder with inversion on obstacles.
Models: Available in both 24V or 230V
Specifications - 230V
Electric Motor: Asynchronous single phase
Max Power: 380 W
Power Supply Voltage: 220-240V ~ 50/60 Hz
Max Torque: 330Nm
Max leaf weight: 500kg / 1102lbs
Max leaf width: 2m (3.5m with electric lock)
Protection Class: IP67
Use frequency: S3 30%
Downloads

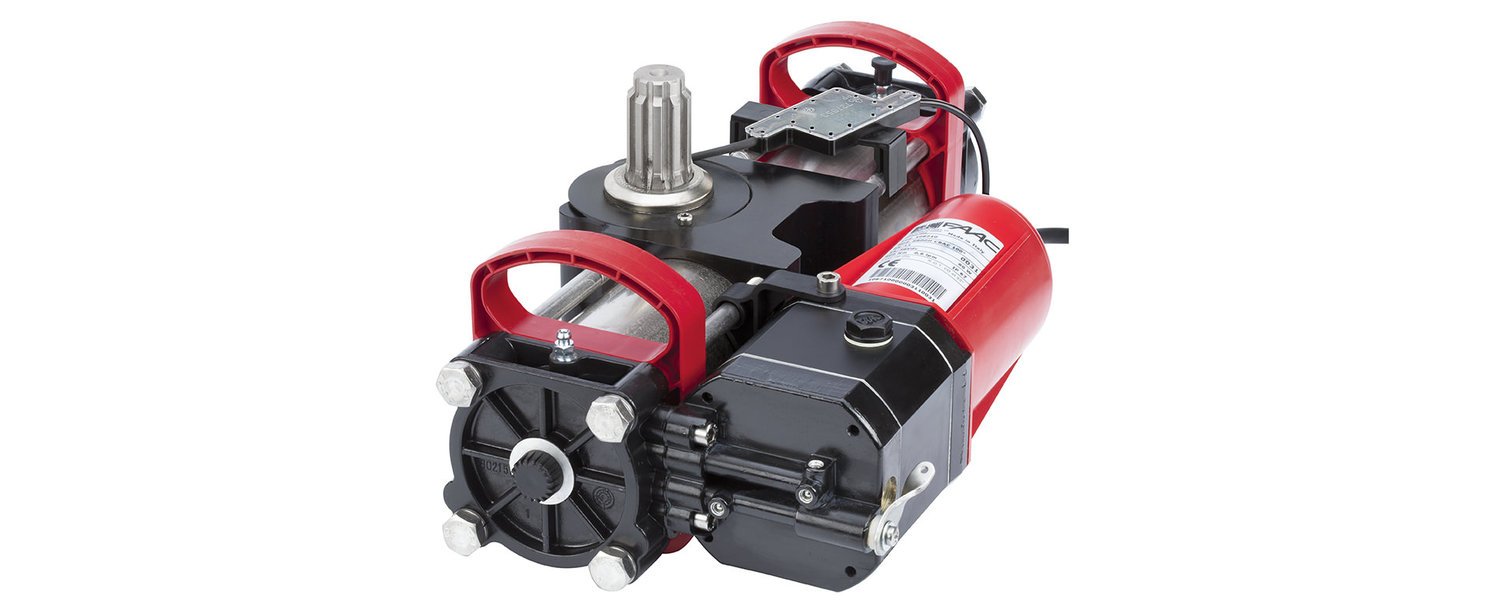

FAAC S800H ENC
This underground hydraulic swing gate system offers high-performance in high traffic applications. Great for continuous use applications in such as condominiums and industrial uses. This durable unit is housed in load-bearing steel that is designed to support the weight of the gate.
For more information, contact us or download the info sheet
Features and Benefits:
Non-intrusive: Installed within a load-bearing steel housing, this operator is discreet.
Adjustable: The built-in positive stops enable the opening and closing stop positions to be set with ease.
Safe: Absolute magnetic encoder is integrated for anti-crushing safety and reverse on obstacle detection. In the event of a power outage, the encoder will memorize the position of the leaf where ever it stops.
Easy: The hydraulic release system allows for operation from inside or outside of the property using a coded key.
Specifications
Electric Motor: 24V
Max Power: 60 W
Power supply : 220-240V ~ 50/60 Hz
Max leaf width: 2m
Max leaf weight: 800kg / 1763lbs
Protection Class: IP67
Use frequency: Continuous
