844
A high-performance gearmotor offers a modern and durable approach sliding gates for light duty commercial and industrial. These gates excel in demanding situations such as emergency access areas and high-traffic applications. Since the electronic equipment can be fitted internally or remotely, the installation process is very flexible.
For more information, contact us or download the info sheet

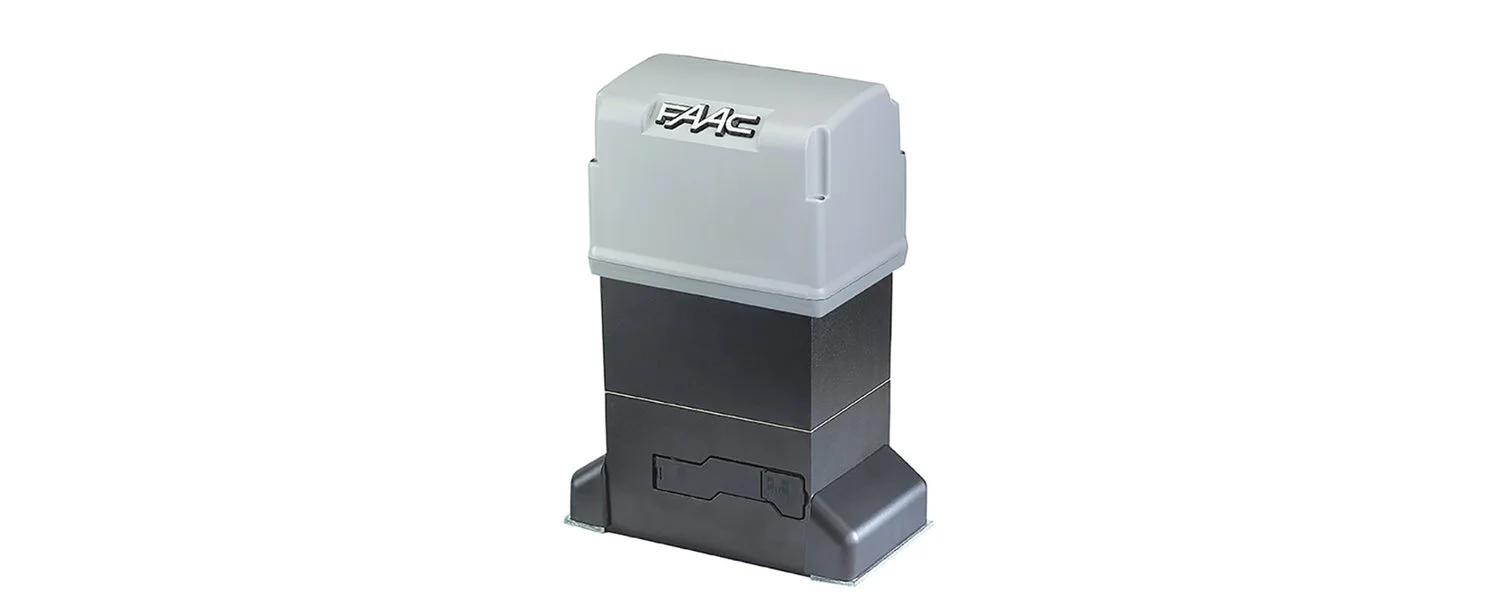

Model 844
Features and Benefits:
Reliable: Even when there is no power being supplied to the motor, the gate can be moved to ensure that access is still granted. This is essential in high-traffic and emergency access applications.
Non-reversing: The gearmotor is non-reversing, no electric locks are required
Safe: Maximum anti-crushing safety by coupling the twin-disk oil-bath clutch with the electronic device and encoder
Suitable for 1800kg max. gate weight
Specifications - Model 740
Electric Motor: Gearmotor
Voltage: 115V or 220V
Max. gate speed: 9.5-12 m/min
Absorbed power: 650W
Motor rotation speed: 1400 rpm
Max. gate length: 50m
Max. gate weight: 1800kg
Use frequency: 70% - 40 cycles per hr on 5m gate
Limit Switch: Inductive
