Barrier Gates
FAAC Barriers provide maximum security

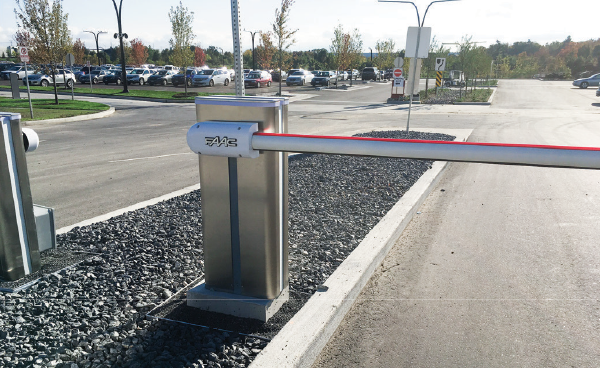

Control vehicle access with ease using FAAC automatic barriers. Whether for a parking lot or a toll booth, these barriers provide the security you need. Built with high-quality materials, FAAC barriers withstand harsh weather for years and feature fast opening times and a variety of arm lengths.
Need more information or want to request a quote? Contact us today!

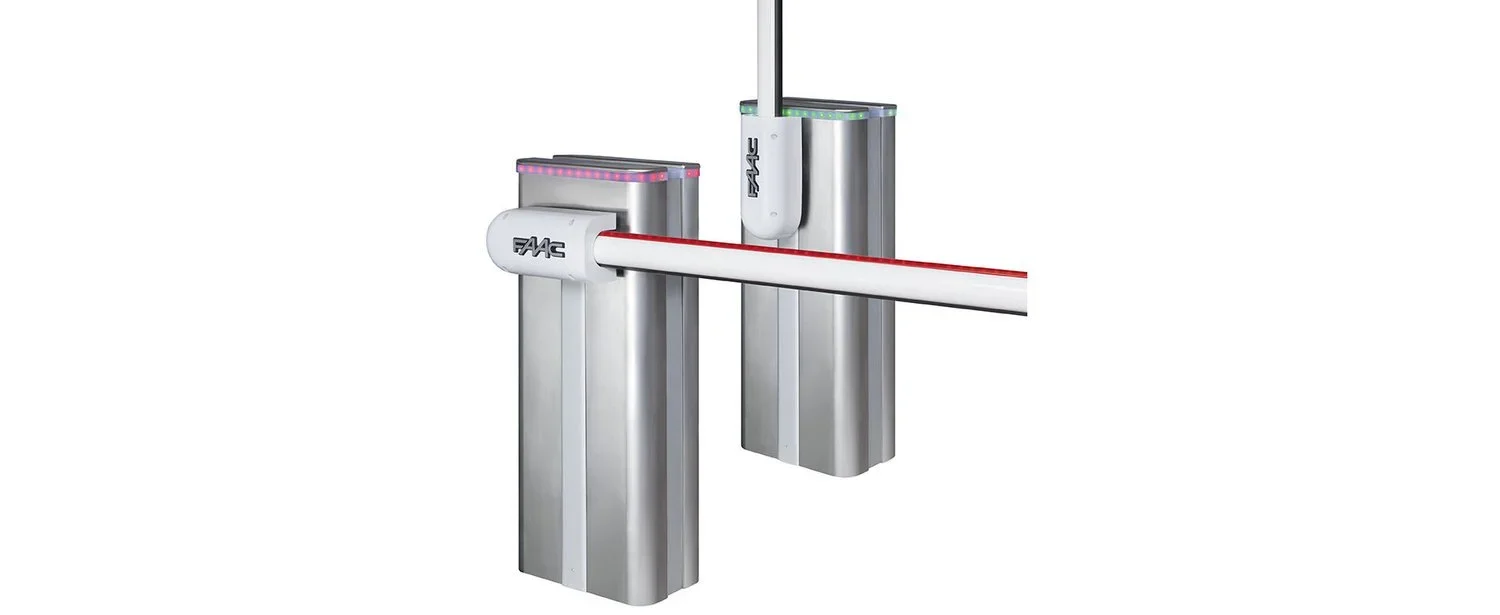

B680H
FAAC B680H is an automatic hybrid barrier that offers long-lasting performance and the ability to exceed over 2,000,000 cycles. When you need a secure solution that you can trust, FAAC gate products are a perfect choice. The integrated encoder allows for the adherence of safety standards, ensuring safe operation for both pedestrians and vehicles.
Automatic 24V hybrid barrier
Everlasting springs and a battery backup will keep these gates running even in the event of a power failure or other emergency
Available in stainless steel cabinet or a choice of 4 colours: Flame Red, Steel Blue, Pure White, Aluminum Grey
Features and Benefits:
Switching power supply: Offering high energy efficiency and extended range, these are protected from changes in voltage that may occur
Frequency: Able to handle high-traffic applications while operation remains smooth and fast
Fast: Both short and long beams are able to be moved at a high-speed to ensure that traffic continues to flow
Safety: The integrated encoder manages the speed with sensitivity to to obstacles for optimal safety
Visibility: For clarity, there is an integrated strip of LED lights that can be programmed with ease
Specifications:
Power supply: 100 ÷ 240 ~ 50 (60)Hz
Electric motor: 36 Vdc Brushless
Motor rotation speed: 1.000 ÷ 6.000 RPM
Protection class: IP56
Beam type: Round or elliptical with lights and rubber bumper
Beam lengths: 3m, 4m, 5m, 6m, 7m, 8m (Also available in L-beam)
Downloads
